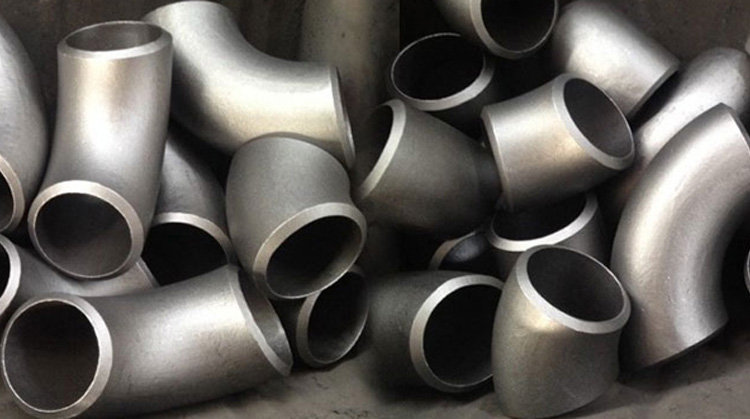

One Of The Best Supplier Of SS Pipe Fittings
| Specifications | ASTM A403 |
|---|---|
| size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Stainless Steel Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 Stainless Steel Buttweld Fitting |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nominal Pipe Size |
Outside Diameter |
90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inches)
|
Long Radius
|
Short Radius
|
Long Radius
|
Long Radius
|
||||
|
(mm)
|
(inches)
|
Center to Face
(inches) |
Center to Face
(inches) |
Center to Face
(inches) |
Radius
(inches) |
Center to Center
(inches) |
Back to face
(inches) |
|
|
1/2
|
21.3
|
0.840
|
1 1/2
|
–
|
5/8
|
2
|
1 7/8
|
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
–
|
7/16
|
2 1/4
|
1 11/16
|
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
